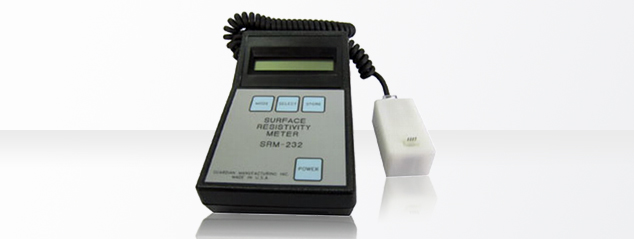

The SRM-232 Sheet Resistance Meters are low-cost hand-held sheet resistance testing systems that include a meter and a four-point probe for use in measuring the sheet resistance of applied coatings such as conductive paints, EMI coatings, ITO on glass, etc.
Applications for the SRM-232 systems include measuring the sheet resistance of conductive paint on Low Observable Aircraft to verify uniform paint thickness, measuring the sheet resistance of EMI paint applied to computer chassis, measuring the sheet resistance of ITO on glass used in flat panel displays, and measuring many other types of conductive coatings. The SRM-232 systems are also used in the solar cell industry for checking wafers (not ingots).
- 127 internal data point storage capability
- Light, portable, hand-held design
- RS-232 interface for remote data transfer
The SRM-232 units are available in four measurement ranges:
SRM-232-10
- Range: 0.000 to 9.999 ohms/square.
- Displayed as: # # . # # #
- Resolution: 0.004 ohms/sq.
- Accuracy: 0.01 ohms/sq. @ 1.00 ohm/sq.
SRM-232-100
- Range: 00.00 to 95.00 ohms/square.
- Displayed as: # # # . # #
- Resolution: 0.04 ohms/square
- Accuracy 0.07 ohms/square @ 10.00 ohms/square.
SRM-232-1000
- Range: 00.00 to 999.99 ohms/square.
- Displayed as: # # # . # #
- Resolution: 0.4 ohms/sq.
- Accuracy: 0.7 ohms/sq. @ 100 ohm/sq.
SRM-232-2000
- Range: 0 to 2000 ohms/square.
- Displayed as: # # # # . #
- Resolution: 0.8 ohms/sq.
- Accuracy: 1.4 ohms/sq. @ 1000 ohm/sq.
